Lined Valves
Altec supplied lined valves from USA and Europe manufactured by CRP, Ethylene, Hills-McCanna, Flowserve, Swissfluid, ABZ etc.
● Ball Valve ·Sizes: 1/2”~12”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 200℃
·Pressures: full vacuum to 16bar
·Body: Cast Steel/ductile iron or stainless steel PFA Lined
|
 |
● Plug Valve
·Sizes: 1/2”~12”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 200℃
·Pressures: full vacuum to 16bar
·Body: Cast Steel/ductile iron or stainless steel PFA Lined |
 |
● Butterfly Valve ·Sizes: 1”~24”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 220℃
·Pressures: full vacuum to 16bar
·Body/Disc: Cast Steel/ductile iron PFA Lined |
 |
● Diaphragm Valve ·Sizes: 1/2”~12”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 150℃
·Pressures: full vacuum to 16bar
·Body: Cast Steel or stainless steel casting PP/PVDF/ETFE/PFA/glass/rubber lined,
Solid plastics, Metal unlined
·Diaphragm: EPDM , or PTFE/Viton |
 |

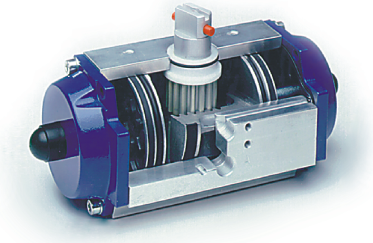

● Valve Actuation
Most types of valves can be supplied with actuators assembled to customer specification.
·Rack & Pinion, Scotch & Yoke and electric actuators
·Solenoid, limit switch, positioner, filter and regulator, emergency gear, etc |
 |
● Poppet Check Valve
·Sizes: 1”~4”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 200℃
·Pressures: full vacuum to 19bar
·Body: Carbon steel or Stainless steel PFA lined
·Poppet: PTFE
·Spring: Hastelloy C276 or PTFE encapsulated
·Connection: Wafer and flanged |
 |
● Swing Check Valve
·Sizes: 1-1/2”~24”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 200℃
·Pressures: full vacuum to 19bar
·Body and Disc: Cast steel or Stainless steel PFA Lined |
 |
● Ball Check Valve
·Sizes: 1/2”~6”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 200℃
·Pressures: full vacuum to 10bar
·Body: Cast Steel/ductile iron PFA Lined
·Ball: Solid PTFE |
 |
● Strainer
·Types: Basket and 45°
·Size: 1”~10”
·Rating and Dimension: ASME 150#, DIN PN10/16
·Temperatures: up to 200℃
·Pressures: full vacuum to 10bar
·Body: Cast Steel/ductile iron PFA or ETFE Lined
·Strainer: Solid PTFE |
  |
● Composite Valve ·Types: ball, butterfly, ball and swing check, lined butterfly, ceramic lined ball
·Material: Vinyl ester, epoxy resin fiberglass or carbon graphite reinforced
·Size: Ball 1”~6” Butterfly 2”~16” Check 1”~36”
Lined butterfly 2”~16” Ceramic lined ball 1”~6”
·Temperature: -45℃ ～ 120℃
·Pressure: full vacuum to 19bar
·Application: Lightweight, high strength, impact and corrosion resistant valve body |
 |
