High Performance Valves
.png)
Altec supplies high performance valves from ACHECH of Europe for high pressure and high temperature service in the industry of power, petrochemical, refinery, oil and gas.
● Gate & Power Station Gate
·Bonnet Type: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet
·Ends: Flange, Butt Weld, Socket Weld, NPT
·Design Standards: API 600, ANSI B16.34, API 603, API 602
·Materials: Carbon steel, Stainless steel, Alloy 20, Monel, Hastelloy,
Inconel
·Size: 1/4”~80”
·Pressure Range: ANSI 150#~4500#, DIN PN16~PN760
|
 |
● Globe & Power Station Globe
·Bonnet Type: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet,
Bonetless
·Ends: Flange, Butt Weld, Socket Weld, NPT
·Design Standards: BS 1873 , ANSI B16.34, API 603, API 602
·Materials: Carbon steel, Stainless steel, Alloy 20, Monel, Hastelloy,
Inconel
·Size: 1/4”~32”
·Pressure Range: ANSI 150#~4500#, DIN PN 16~PN760
|
 |

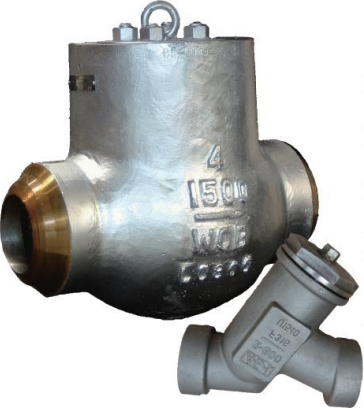

● Check & Power Station Check
·Bonnet Type: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet,
Bonetless
·Disc Type: Swing, Lift, Tilting, Soft Seat
·Ends: Flange, Butt Weld, Socket Weld
·Design Standards: BS 1868 , ANSI B16.34, API 603, API 602
·Materials: Carbon steel, Stainless steel, Alloy 20, Monel, Hastelloy,
Inconel
·Size: 1/4”~60”
·Pressure Range: ANSI 150#~4500#, DIN PN 16~PN420
|
 |
● Non-Slam Check
·Design Standards: BS 1868 , ANSI B16.34, API 603, API 602
·Type: Dual Plate, Disc, Axial
·Ends: Wafer, Lug, Double flange, Butt weld
·Materials: Carbon steel, Stainless steel, Alloy 20, Monel, Hastelloy,
Inconel
·Size: 1/2”~48”
·Pressure Range: ANSI 150#~4500#, DIN PN 16~PN250
|
 |
● Ball
·Design Standards: API 6D , API 608, API 607, Firesafe
·Materials: Carbon steel, Stainless steel, Alloy 20, Monel, Hastelloy,
Inconel
·Size: 1/4”~36”
·Ball Type: Floating, Trunnion mounted
·Ends: Flange, Butt Weld, Socket Weld, NPT
·Pressure Range: ANSI 150#~2500#,
|
 |
● Butterfly
·Design Standards: API 609, ISO5752
·Materials: Carbon steel, Stainless steel, Alloy 20, Monel, Hastelloy,
Inconel
·Size: 2”~100”
·Seat Type: NBR, EPDM, Viton, PTFE, other elastics.
·Type: Soft seated, double eccentric, triple eccentric
·Ends: Wafer, Lug, Double flange
·Pressure Range: ANSI 150#~2500#, DIN PN10~PN420
|
 |
● Modulation Valves
● Valve Actuation
Most types of valves can be supplied with actuators assembled to
customer specification.
·Rack & Pinion, Scotch & Yoke and electric actuators
·Solenoid, limit switch, positioner, filter and regulator, emergency gear,
etc
|
 |
|
|
