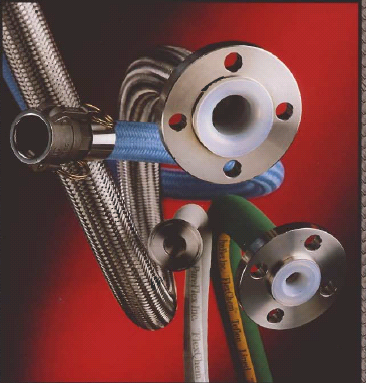

PTFE Lined Hoses
Altec is the stock and manufacturing distributor on hoses and fittings of Pureflex Inc. USA in China and South East Asia. PureFlex is a world leading manufacturer of high performance Fluoropolymer and composite products and technologies. We specialize in supply of fluid handling and sealing products designed for chemical, pharmaceutical and ultra-pure related industries.
Our products are engineered and manufactured for maximum flexibility and performance against the broadest range of chemicals, temperatures and pressure extremes. For sanitary and ultra-pure applications, our products meet and/or exceed Pharmacopoeia USP23 Class VI, FDA 21CFR-177.2600, USDA and 3A criteria.
● Flexchem: Rubber Covered Smooth Bore, Virgin and Conductive Liners
·Liner Materials: Heavy duty PTFE, FEP,
·Cover: EPDM rubber
·Size Range: 1/2”~6”
·Pressure Rating: Full vacuum to 3.5MPa
·Temperature Rating: -40℃~175℃
|
 |
● SmoothFlex: Braided Smooth Bore, Virgin and Conductive Liners
·Liner Materials: PTFE, PFA
·Cover: Stainless Steel Braid, Optional Silicone outer cover
·Size Range: 1/8”~1-1/2”
·Pressure Rating; Full Vacuum to 35MPa
·Temperature Rating: -54℃~230℃ |
 |
● MTH: Braided Smooth Bore, Double Contained
·Liner Materials: PTFE
·Cover: Stainless Steel Convoluted and Braid
·Size Range: 1”~10”
·Pressure Rating: Full vacuum to 1.9MPa
·Temperature Rating: -54℃~175℃ |
 |
● Ultraflex: Braided Convoluted, Virgin and Conductive Liners
·Liner Materials: PTFE, PFA
·Cover: Stainless Steel, Polypropylene, Coverless
·Size Range: 1/2”~6”
·Pressure Rating: Full vacuum to 10MPa
·Temperature Rating: -54℃~230℃
|
 |
● NEXUS: Braided Smooth/Convoluted Liner
·Liner Materials: PTFE with smooth bore ID and convoluted OD
·Cover: Stainless Steel, Polypropylene
·Size Range: 3/4”~2”
·Pressure Rating: Full vacuum to 7.5MPa
·Temperature Rating: -54℃~230℃
·Features: Combines smooth bore cleanability and excellent flexibility |
 |
● Cl2: Chlorine/Bromine Transfer Hose, Virgin and Conductive Liners
·Liner Materials: PTFE
·Cover: Kynar PVDF braid
·Size Range: 1/2”~2”
·Pressure Rating: Full vacuum to 3.5MPa
·Temperature Rating: -40℃~175℃ |
 |
● Other Hoses
·Silicone Hose and Tubing
·Food grade rubber hose
·Industrial rubber hose and metal hose
·Hydraulic hose
·PVC hose
·Heated hose
.png)
Fitting Materials: Stainless steel, Monel, Hastelloy, Solid Kynar PVDF, Solid polypropylene, PFA encapsulated, Liner flared through.
·Fitting Types: Thread, Sanitary, Flange, Camlock, Dry-connection, self-seal, industrial, various adaptors.
|
|
|
